HFC-R236fa
R236fa, is an HFC single component with zero ODP. It is retrofit refrigerant for R-114 in some low-pressure centrifugal chillers. When used as fire extinguishing agents, it replace Halon1211 in the portable fire extinguishers.
Replace
R114
Halon1211
Applications
Refrigerants. It is used in new and existing low pressure centrifugal chillers and industrial process refrigeration systems
Extinguishing agents. It replaces Halon1211 in the portable fire extinguishers.
Physical properties
| Component: | Chemical name: | Molecular formula: | Weight%: |
| HFC-236fa | 1,1,1,3,3,3-Hexafluoropropane | CF3 CH2CF3 | 100 |
| Molecular weight | 152.04 | ||
| Boiling point | -1.4 ºC | ||
| Critical temperature | 124.9ºC | ||
| Critical pressure | 3200kPa | ||
| Odor | Faint ethereal odor | ||
| Form | Liquefied gas | ||
| Color | Clear, colorless | ||
| Vapor Pressure at 25 ºC | 272.4kPa | ||
| Vapor Density at 25 ºC (Air = 1) | 5.1 | ||
| Liquid Density at 25 ºC | 1.36g/cm3 | ||
| Ozone Depletion Potential(ODP) | 0 | ||
| Global Warming Potential(GWP) 100yr | 6300 | ||
| ASHARE Safety Group Classification | ---- | ||
| Flammability at 1 atm. and 18 ºC | Non-flammable | ||
Packing:
Refillable steel cylinders: 1000kg/ 926L

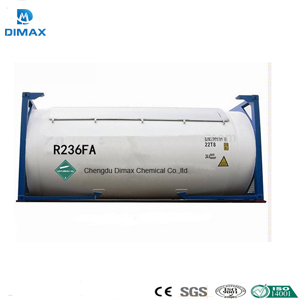

Iso tank: 20MT/TANK
